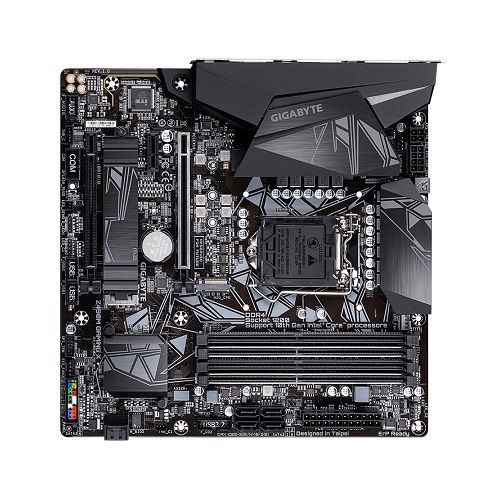

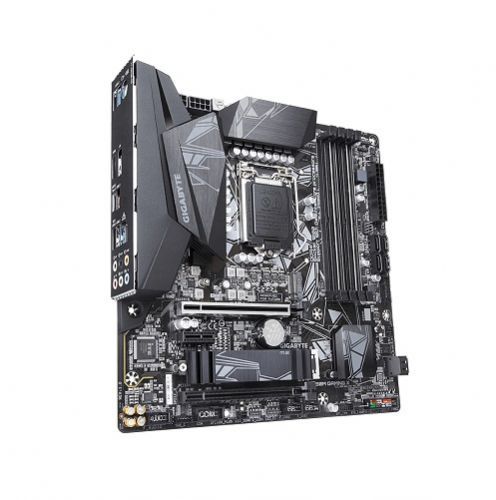

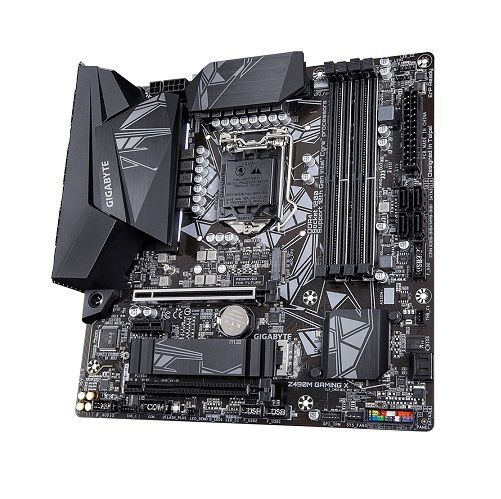

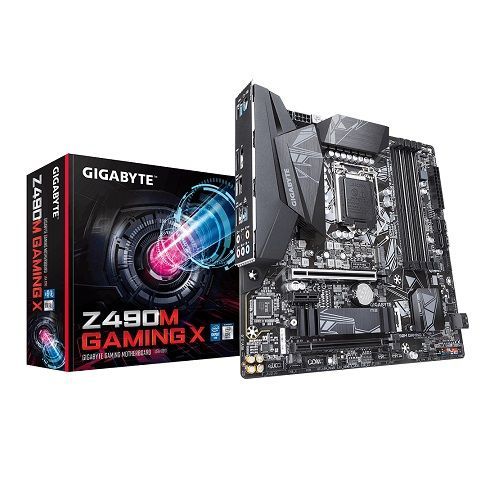

M1200 Placa Mãe LGA1200 Gigabyte Z490M GAMING X DDR4 (4x DDR4 / 1x PCIe 3.0 x16 / 1x 3.0 PCIe x4 / 1x 3.0 PCIe x1 / 1x USB 3.2 Type-C Gen2 / 1x USB 3.2 Gen2 / 4x USB 3.2 / 1x DisplayPort / 1x HDMI / 1x PS2)
Faça o login para acessar os preços. |
|
|||||||||||
Marca: Gigabyte
Modelo: Z490M Gaming X
Especificações Técnicas:
CPU
- Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
- L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
- Intel® Z490 Express Chipset
Memória
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
- Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Gráficos Onboard
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
* Maximum shared memory of 512 MB
Áudio
- Realtek® ALC1200 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
LAN
- Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Slots de Expansão
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 3.0 standard.)
* Supports up to ASPM L1.2 power management protocols.
Tecnologia Multi-Graphics
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Interface de Armazenamento
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
* Intel® Optane™ Memory Ready
* M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB
- Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Conectores Internos I/O
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 6 x SATA 6Gb/s connectors
- 1 x M.2 Socket 3 connector
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 2 x Thunderbolt™ add-in card connectors
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x Q-Flash Plus button

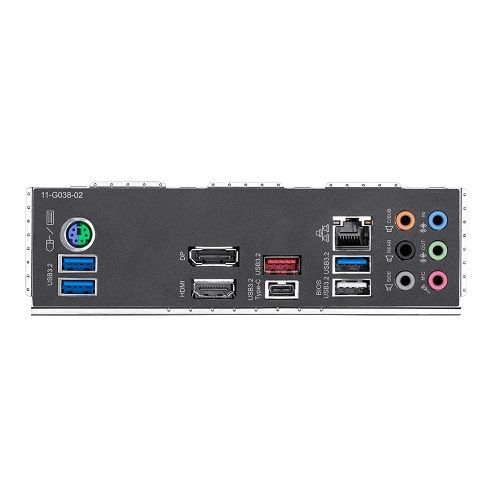

Conectores Painel Traseiro
- 1 x PS/2 keyboard/mouse port
- 4 x USB 3.2 Gen 1 ports
- 1 x DisplayPort
- 1 x HDMI port
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
- 1 x RJ-45 port
- 6 x audio jacks
Controlador I/O
- iTE® I/O Controller Chip
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Características Exclusivas
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- @BIOS
- EasyTune
- Fast Boot
- Game Boost
- ON/OFF Charge
- RGB Fusion
- Smart Backup
- System Information Viewer
- Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
Pacote de Software
- Norton® Internet Security (OEM version)
- cFosSpeed
Sistema Operacional
- Support for Windows 10 64-bit
Form Factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
Observação
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
| Processador | |
| Socket | N/C |
| Memória | |
| Tipo | N/C |
| Frequência | N/C |
| Slots | N/C |
| Chipset | |
| Modelo | N/C |
| Expansão | |
| PCI-Ex X1 | N/C |
| PCI-Ex X4 | N/C |
| PCI-Ex X8 | N/C |
| PCI-Ex X16 | N/C |
| PCI | N/C |
| Armazenamento | |
| Sata 6Gb | N/C |
| Sata 3Gb | N/C |
| IDE | N/C |
| Portas Externas | |
| PS2 | N/C |
| eSata | N/C |
| Lan | N/C |
| USB 2.0 | N/C |
| USB 3.0 | N/C |
| Optical S/PDIF | N/C |
| Audio | N/C |
| VGA | N/C |
| DVI | N/C |
| HDMI | N/C |
| FireWire | N/C |
| Serial | N/C |
| Paralela | N/C |
| Display Port | N/C |
| Multi GPU | |
| SLI | N/C |
| CrossFire | N/C |
Garantia de 12 meses.
Garantia Balcão. Encaminhe o produto para o nosso depto de RMA. Ao recebermos, faremos uma avaliação prévia e encaminharemos a peça para o Fabricante, que definirá se o ítem atende aos critérios de garantia, com relação à danos físicos, pontos de oxidação, componentes queimados ou quebrados. Caso o produto atenda aos critérios, o mesmo será reparado e posteriormente devolvido. INFORMAÇÃO IMPORTANTE:
A aceitação do produto pelo RMA da New Face, não garante que a peça esteja em garantia COM RELAÇÃO AOS CRITÉRIOS DO FABRICANTE.
