REF.: 1101861

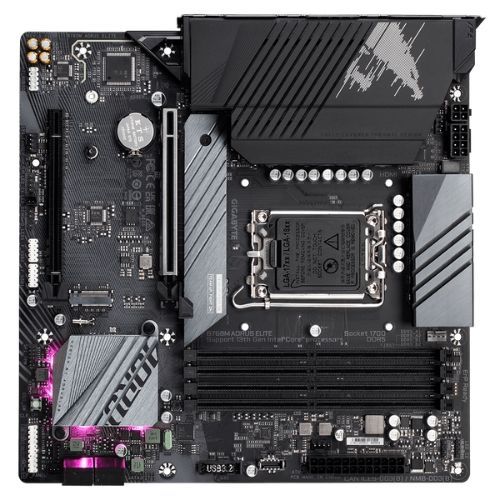

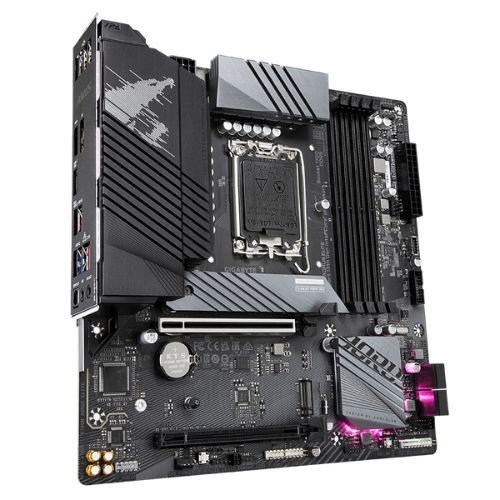

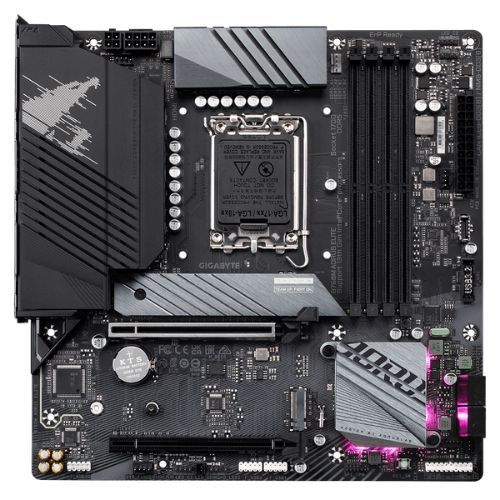

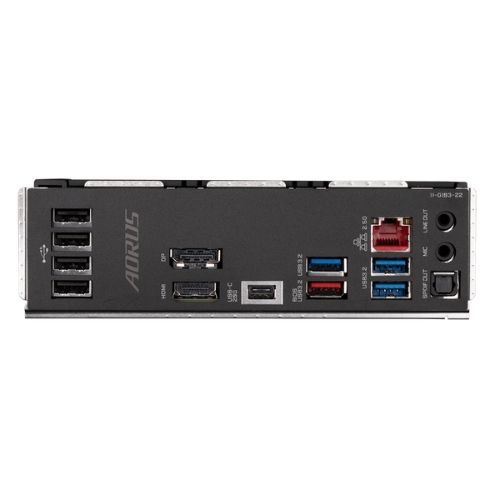

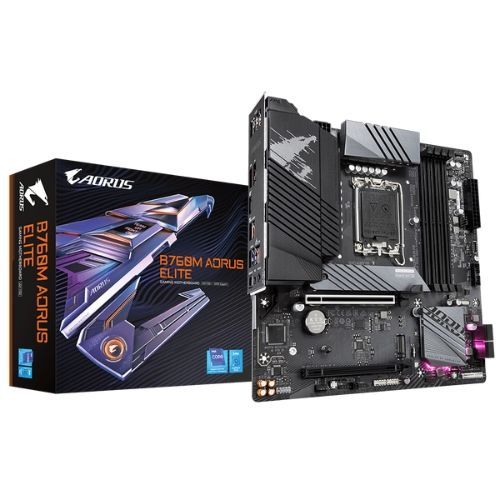

M1700 Placa Mãe LGA1700 Gigabyte B760M AORUS ELITE DDR5 ( 4x DDR5 / 2x PCI Express x16 / 1x USB C / 1x USB 3.2 G2 / 3x USB 3.2 G1 / 4x USB 2.0 / 1x HDMI / 1x Displayport ) - <b>Compatível com os processadores Intel 12ª, 13ª e 14ª Gerações LGA1700</b>
(0) Avaliações | Clique aqui e seja o primeiro a avaliar
M1700 Placa Mãe LGA1700 Gigabyte B760M AORUS ELITE DDR5 ( 4x DDR5 / 2x PCI Express x16 / 1x USB C / 1x USB 3.2 G2 / 3x USB 3.2 G1 / 4x USB 2.0 / 1x HDMI / 1x Displayport ) - Compatível com os processadores Intel 12ª, 13ª e 14ª Gerações LGA1700
Valores especiais para empresas
Login ou Cadastre-se-
Informações Técnicas
Marca: GIGABYTE Modelo: B760M AORUS ELITE Especificações Técnicas Não é necessário um Processador para atualizar a bios para o uso da 13ª/14ª Geração>/b> Soquete LGA1700: suporte para processadores Intel® Core¿, Pentium® Gold e Celeron® de 13ª e 12ª geração* O cache L3 varia com a CPU Chipset - Intel® B760 Express Chipset Memória - Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory - Dual channel memory architecture - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules Gráficos Onboard - Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Áudio - Realtek® Audio CODEC - High Definition Audio - 2/4/5.1/7.1-channel - Suporte S/PDIF Out LAN - Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Slots de Expansão CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Support for AMD CrossFireX¿ technology Interface de Armazenamento - CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) - Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB - Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 3.2 Gen 1 port on the back panel - 4 x USB 2.0/1.1 ports available through the internal USB headers - Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Conectores Internos I/O - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x 4-pin ATX 12V power connector - 1 x CPU fan header - 3 x system fan headers - 2 x addressable LED strip headers - 2 x RGB LED strip headers - 2 x M.2 Socket 3 connectors - 4 x SATA 6Gb/s connectors - 1 x front panel header - 1 x front panel audio header - 1 x USB Type-C® header, with USB 3.2 Gen 2 support - 1 x USB 3.2 Gen 1 header - 2 x USB 2.0/1.1 headers - 2 x Thunderbolt¿ add-in card connectors - 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) - 1 x Q-Flash Plus button - 1 x reset button - 1 x reset jumper - 1 x Clear CMOS jumper Conectores Painel Traseiro - 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support - 1 x USB 3.2 Gen 2 Type-A port (red) - 3 x USB 3.2 Gen 1 ports - 4 x USB 2.0/1.1 ports - 1 x HDMI port - 1 x DisplayPort - 1 x RJ-45 port - 1 x optical S/PDIF Out connector - 2 x audio jacks Controlador I/O - iTE® I/O Controller Chip Monitoramento H/W - Voltage detection - Temperature detection - Fan speed detection - Water cooling flow rate detection - Fan fail warning - Fan speed control BIOS - 1 x 256 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Características Exclusivas - Suppo
-
