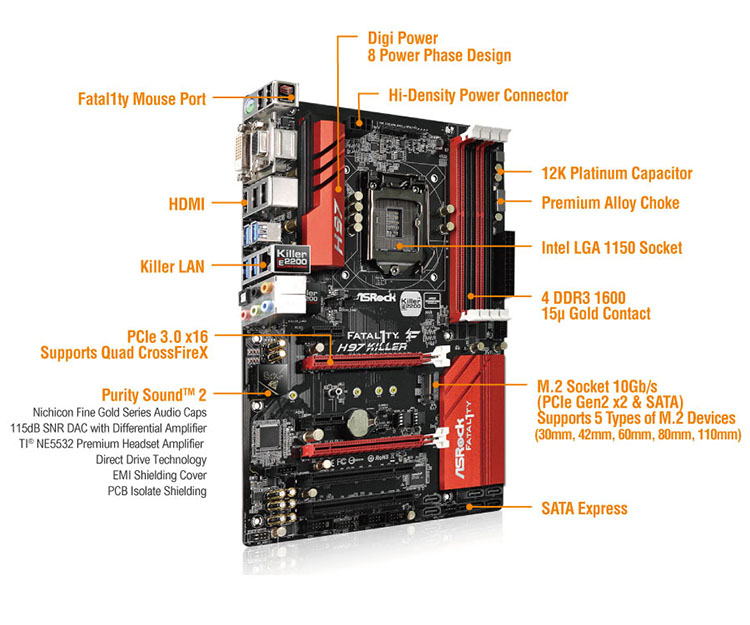

M1150 Placa Mãe LGA1150 ASRock FATAL1TY H97 KILLER ( 4x DDR3 / 1 PCIe 3.0 x16 / 1x PCIe 2.0 x16 / 2x PCIe 2.0 x1 / 2x PCI / 1x SATA Express / 6x SATA3 / 1x M.2 / 6x USB 3.0 / 8x USB 2.0 / 1x HDMI / 1x DVI-D / 1x VGA )
Faça o login para acessar os preços. |
|
|||||||||||
Processador:
- Supports 5th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
- Supports New 4th and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
- Digi Power design
- 8 Power Phase design
- Supports Intel® Turbo Boost 2.0 Technology
Chipset:
- Intel® h97
Memoria:
- Dual Channel DDR3 Memory Technology
- 4 x DDR3 DIMM Slots
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
Video:
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Max. shared memory 1792MB
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR
- Supports HDCP with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
Slots de Expansão:
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
- 1 x PCI Express 2.0 x16 Slot (PCIE4: x4 mode)
- 2 x PCI Express 2.0 x1 Slots
- 2 x PCI Slots
Crossfire/SLI:
- Suporta AMD Quad CrossFireX™ e CrossFireX™
Armazenamento:
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
- 1 x SATA Express 10 Gb/s Connector (shared with SATAE_4, SATAE_5 and M.2 Socket)
- 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)
Onboard Audio:
- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- Supports Purity Sound
- Nichicon Fine Gold Series Audio Caps
- 115dB SNR DAC with differential amplifier
- TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
- Direct Drive Technology
- EMI shielding cover
- PCB isolate shielding
- Supports DTS Connect
Onboard LAN:
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Qualcomm® Atheros® Killer™ E2200 Series
- Supports Qualcomm® Atheros® Security Wake On Internet Technology
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Portas traseiras da placa:
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)
- 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)
- 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Conectores Internos I/O:
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED Header
- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
- 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)
- 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)
Monitoramento:
- CPU/Chassis temperature sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages
Recursos Especiais:
- ASRock F-Stream
- ASRock Disk Health Report
- ASRock USB Key
- ASRock Key Master
- ASRock System Browser
- ASRock APP Charger
- ASRock XFast RAM
- ASRock Restart to UEFI
UEFI:
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock UEFI Guide
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI Tech Service
- ASRock Dehumidifier
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer
Formato:
- ATX Form Factor
- High Density Glass Fabric PCB
Conteúdo da Embalagem:
- 01 Placa Mãe ASRock Fatality
- 02 Cabos SATA
- 01 Shield
- 01 CD Driver
- 01 Parafuso
- Manual do Usuário
| Processador | |
| Socket | LGA 1150 |
| Memória | |
| Tipo | DDR3 |
| Frequência | 1600/1333/1066 non-ECC |
| Slots | 4 |
| Chipset | |
| Modelo | Intel® h97 |
| Expansão | |
| PCI-Ex X1 | 2 |
| PCI-Ex X4 | - |
| PCI-Ex X8 | - |
| PCI-Ex X16 | 2 |
| PCI | 2 |
| Armazenamento | |
| Sata 6Gb | 6 |
| Sata 3Gb | - |
| IDE | - |
| Portas Externas | |
| PS2 | 1x |
| eSata | |
| Lan | 1x |
| USB 2.0 | 4x |
| USB 3.0 | 4x |
| Optical S/PDIF | 1x |
| Audio | 5x |
| VGA | 1x |
| DVI | 1x |
| HDMI | 1x |
| FireWire | - |
| Serial | - |
| Paralela | - |
| Display Port | - |
| Multi GPU | |
| SLI | - |
| CrossFire | Sim |
Garantia de 12 meses com a New Face.
Link do Fabricante: http://asrock.com/mb/Intel/Fatal1ty%20H97%20Killer/index.br.asp
